MoE Expert FFN Backend: experts_implementation
1. experts_implementation
A PR (#42697) that adds support for selecting the Expert FFN computation method in MoE models has been merged into HuggingFace Transformers. Just like how attn_implementation allowed you to choose the attention computation backend, you can now hook into the expert computation and run it with the backend of your choice.
2. eager, batched_mm, grouped_mm
Fundamentally, expert FFN follows the same logic: the router selects top-k experts, performs hidden state projection with expert parameters (gate_up_proj, down_proj), and then computes a weighted sum using routing weights. The key difference lies in how the per-expert matrix multiplications are performed.
eager: Loop-Based Reference Implementation
This is the most intuitive approach. It iterates through activated experts one by one using a Python loop, selects only the tokens routed to each expert, and performs per-expert projection on those tokens. However, because it uses torch.where to select tokens assigned to each expert, it becomes difficult to use with torch.compile with the fullgraph=True option.
batched_mm

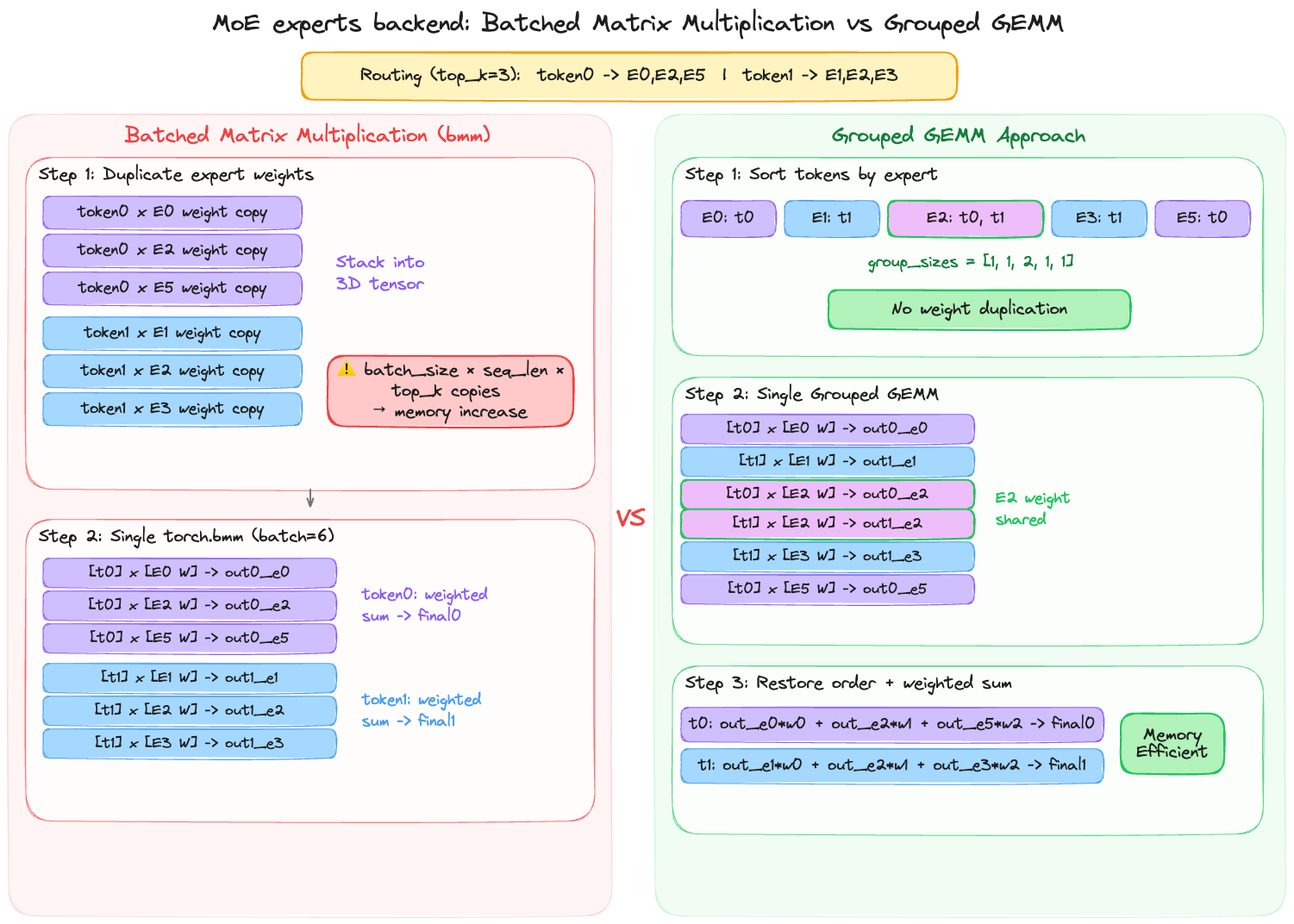

batched_mm duplicates the selected expert’s weights for each token, stacks them into a 3D tensor, and performs batched matrix multiplication all at once using torch.bmm.
torch.bmm stands for Batched Matrix Multiplication — it multiplies pairs of identically-sized matrices all at once.
Since batched_mm is compatible with torch.compile, it supports fullgraph. However, because it copies expert weights, memory usage can more than double compared to eager — making it more advantageous for short sequences or small batch sizes.
grouped_mm
grouped_mm uses torch._grouped_mm to support Grouped GEMM. This approach does not copy weights. Instead, it groups tokens by expert and processes all expert projections simultaneously using the Grouped GEMM kernel.
Since weights are not duplicated, this approach is the most memory-efficient, and it particularly excels with long sequences and large batches.
3. Solar-Open 100B Benchmark

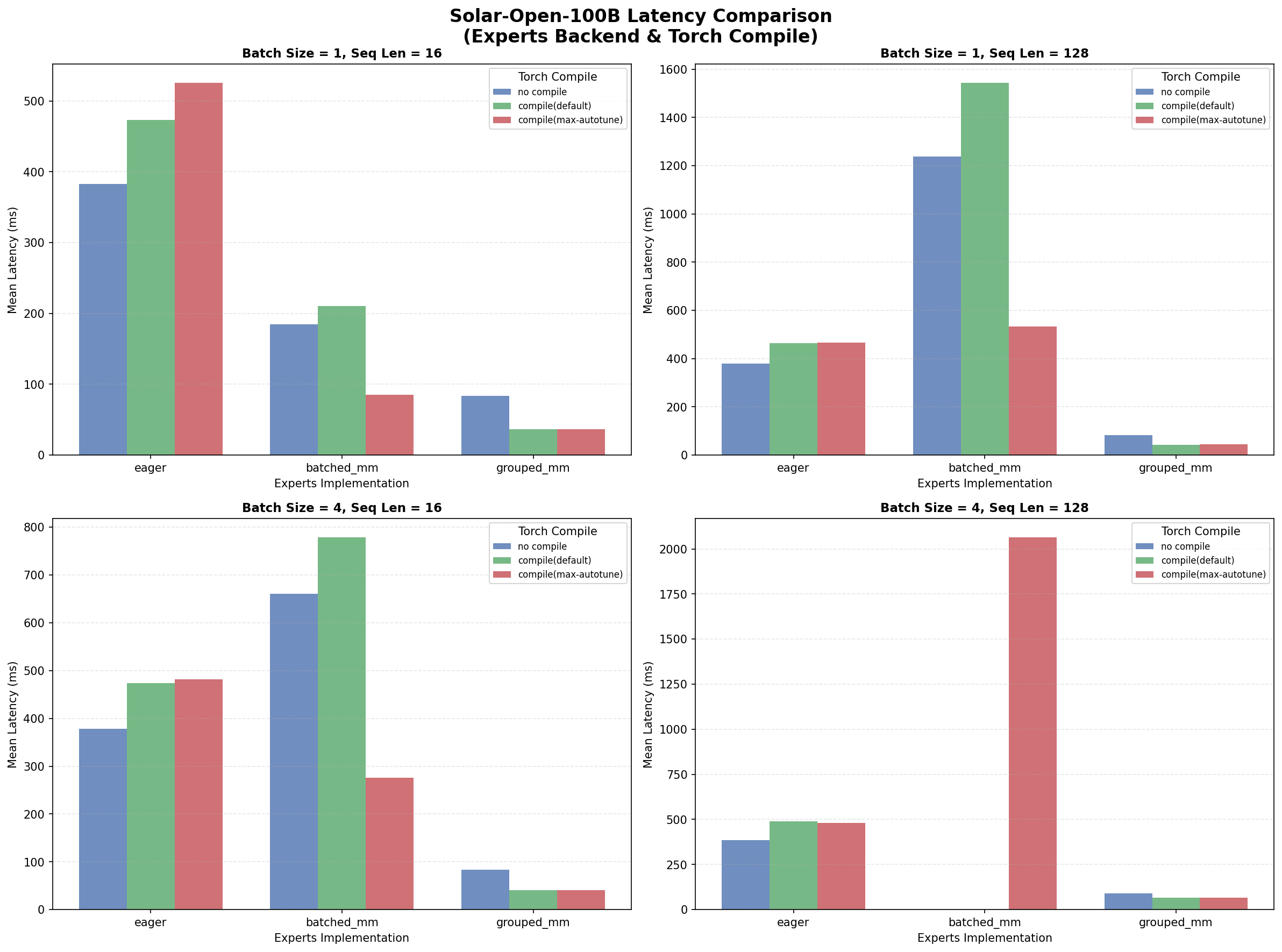

Since the PR showed significant performance differences, I ran benchmarks directly using Upstage’s Solar-Open model. Looking at just the Mean Latency, the differences were meaningful. batched_mm performed reasonably well with short, small inputs, but overall grouped_mm showed the best performance. Compared to eager, even without compile it was about 4x faster on average, and with compile applied the latency difference reached up to 10x.
model = AutoModelForCausalLM.from_pretrained(
"upstage/solar-open-...",
experts_implementation="grouped_mm", # or "batched_mm", "eager"
)
Note that with batched_mm under batch_size=4, seq_len=128 conditions, a memory spike was observed during computation in both compile default and no-compile cases. I left the results as-is without separate modifications for reference.
4. Wrapping Up
It would be worth considering these backend options for MoE model inference. However, since vLLM has its own fused_moe kernel, it cannot be directly used there. I’ll cover the fused_moe kernel in a future post.
